Specifying Civil Engineering Systems for Major Infrastructure in Uganda

As Uganda expands its transport, municipal, and energy infrastructure—from highway networks and bridge culverts to airport aprons and municipal drainage—civil engineers face strict structural durability and water containment challenges. Infrastructure assets are exposed to continuous dynamic loads, heavy seasonal downpours, soil moisture pressure, and structural joint movement.

Relying on standard concrete mixes or unengineered drainage channels leads to premature cracking, reinforcement corrosion, surface ponding, and costly structural rehabilitations.

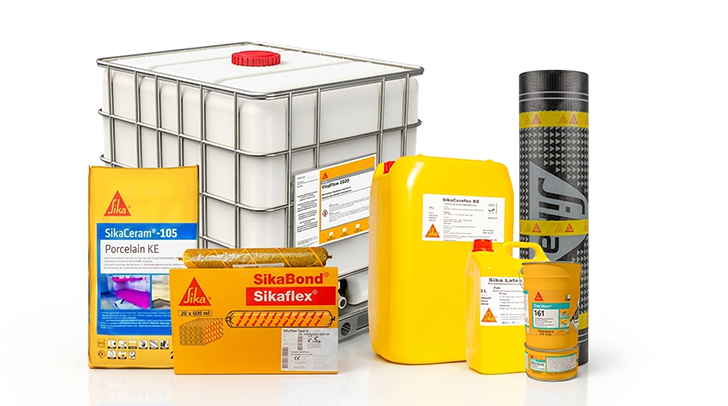

This guide is written for civil engineers, structural consultants, and infrastructure project managers in Uganda. It breaks down specifications for Sika concrete admixtures, waterstops, joint sealants, and ACO heavy-duty surface water management systems designed for civil works.

Concrete Admixtures: Specifying High-Strength, Durable Concrete Pours

Infrastructure elements—such as bridge decks, stadium slabs, culverts, and high-load aprons—require high workability, rapid strength development, and minimal permeability.

What to Specify and Why

Sika ViscoCrete 3088 / Sika ViscoCrete 20 HE: The specification standard for high-performance superplasticizing and water-reducing admixtures. Formulated with polycarboxylate ether (PCE) polymer technology, it provides extreme concrete flowability at low water-cement ratios (w/c < 0.38), allowing dense consolidation without segregation while accelerating early strength gain for fast shutter stripping.

Technical Specs:

• Liquid Density: Approx. 1.08 g/cm³
• Water Reduction: Significant water reduction (up to 30%)
• Standards: Compliance with EN 934-2 standards

Sikament NNG: Recommended for mass concrete pours, structural columns, and continuous foundations in warm Ugandan weather. It provides extended slump retention and high water reduction, maintaining mix workability over long transit times without setting prematurely.

Sika Control / Sika Fume (Silica Fume Admixtures): Specified for aggressive exposure environments like water treatment plants and bridge piers. It densifies the concrete matrix, reducing permeability against chlorides and sulfate attack.

[Explore Sika concrete admixtures and technical specifications]

Joint Waterproofing & Waterstops: Sealing Structural Construction and Expansion Joints

Water ingress through concrete construction and expansion joints threatens structural longevity and corrodes internal steel reinforcement.

What to Specify and Why

Sika Waterbar (PVC Types O & V): The primary physical barrier specified for active expansion and construction joints in retaining walls, water tanks, dams, and bridge abutments. Manufactured from flexible, high-grade polyvinyl chloride, Sika Waterbars are cast directly into concrete edges to block water passage along joint profiles under hydrostatic pressure.

Technical Specs:

• Tensile Strength: High tensile strength (≥ 12 N/mm²)
• Elongation: Elongation at break > 300%
• Chemical Resistance: Resistant to acidic and alkaline soil chemistry

SikaSwell S-2 & SikaSwell Profile: Hydrophilic swelling sealants specified for cold joints, pipe penetrations, and structural interface connections. Upon contact with water, the sealant expands into joint voids to create a permanent pressure-resistant seal.

Sikaflex PRO-3 Purform: High-performance polyurethane sealant for horizontal floor expansion joints, civil pavements, and water-retaining structures. It handles cyclic movement up to ±25% and offers high tear and abrasion resistance under dynamic wheel traffic.

[Read full technical specifications for Sika PVC Waterbars]

Heavy-Duty Surface Water Management: ACO Drainage Infrastructure

Managing intense tropical rain and heavy surface runoff along highways, bus terminals, and municipal precincts is vital to prevent pavement deterioration and surface hydroplaning.

What to Specify and Why

ACO DRAIN Monoblock RD (Heavy Highway & Municipal Yards): Specify continuous monolithic channel systems for high-velocity transport infrastructure. Cast from polymer concrete with an integrated grating profile, Monoblock RD eliminates loose components and resists continuous impact forces from heavy freight vehicles up to Load Class F900.

Technical Specs:

• Load Class: D400 to F900 (EN 1433 compliant)
• Hydraulic Efficiency: High hydraulic capacity via V-profile geometry
• Durability: Frost and chemical resistant monolithic polymer matrix

ACO KerbDrain & Continuous Surface Channels: A combination kerb and drainage channel specified for urban road schemes, roundabouts, and parking bays. It combines road kerbing aesthetics with continuous surface inlet slots, routing stormwater straight into an internal drainage channel to reduce underground pipe network costs.

[Explore ACO Monoblock RD heavy-duty drainage systems]

Substrate Preparation and Concrete Repair Specifications

Existing concrete structures subjected to dynamic weathering or chemical attack require specialized repair and surface protection.

What to Specify and Why

Sika MonoTop-412 N / MonoTop-4012 (Structural Repair Mortar): Fiber-reinforced, low-shrinkage repair mortar specified for structural concrete restoration on bridges, beams, and columns.

Sikadur-31 CF Normal (Epoxy Adhesive): Moisture-tolerant, structural 2-component epoxy adhesive specified for bonding prefabricated elements, anchoring dowels, and sealing concrete cracks.

[View structural concrete repair systems]

Build Resilient Civil Infrastructure with Confidence

Engineering long-lasting civil infrastructure requires tested structural systems combined with rigorous field execution.

HOMNA is a certified technical distributor and applicator of Sika construction chemicals and ACO drainage systems across Uganda. Our engineering team supports civil projects with technical specification design, mix optimization, and quality-controlled site installation.
